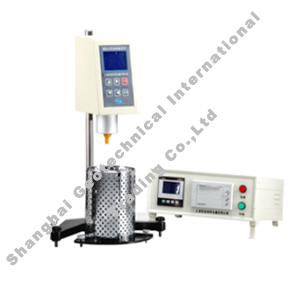

Brookfield rotational viscometers

Brookfield rotational viscometers are designed and made as per industrial standard of People’s Republic of China T0625-2011 Rotational Viscosity Determination for Bitumen by Brookfield Viscometer in JTG E20-2011 Test Methods of Bitumen and Bituminous Mixtures for Highway Engineering. It is suitable to determine the absolute viscosity of Newtonian liquids and apparent viscosity of Non-Newtonian liquids.

The instrument has features of high sensitivity, reliable test result, easy operation and good looking structure.

The instrument adopts advanced mechanical design technology and manufacturing process, using micro- computer technology to control speed,collect data and process data.Equipped with high-light LCD screen and micro-needle printer.

The test data can show on the screen real time and also output by printer.In addition,the instrument can also connect with PC via RS232 communication port.

Measurement range(mPa.s): 100~2×105

Spindle speed(r/min): 5/10/20/50

Spindle specification: 21#27#28#29#

Cubage of sample cylinder: 20ml


Temp.range Room temp.~200℃;Temp.accuracy±1%

PC communication  RS232 port;Printer Needle printer

Power supply AC(220±10%)V  (50±10% )Hz

Ambient Temp. 5℃~35℃  ;RH≤80%

Optional accessory

(Need to be customized )  300℃heating furnace

package 46x41x45cm,17kg;42.5x38x30cm,10kg.
